COMPUTER NETWORKING PROTOCOLS EXAMINATION
CN 211 - UNIVERSITY OF DODOMA
End of Semester One - 2021/2022 Academic Year
** SECTION A: (15 MARKS)**
Question 1 - Multiple Choice
(0.5 Marks Each)
I. A Network Address Translation (NAT gateway) changes the following fields of a packet going from the internal (local area) network to the external (wide area) network: -
- A. Source IP address
- B. Source IP address and source port number
- C. Destination IP address
- D. Destination IP address and destination port number
- E. Source and destination port numbers
Answer (Click to show)
B. Source IP address and source port number
- NAT translates private internal IP addresses to public external IP addresses
- PAT (Port Address Translation) also modifies source port numbers to track connections
II. Which of the following functionalities must be implemented by a transport protocol over and above the network protocol?
- A. End to end connectivity
- B. Packet delivery in the correct order
- C. Detection of duplicate packets
- D. Recovery from packet losses
- E. Routing of packets
Answer (Click to show)
B. Packet delivery in the correct order
- Network layer (IP) provides best-effort delivery without ordering guarantees
- Transport layer (TCP) ensures packets are delivered in correct sequence
III. On classic Ethernet, the Maximum Transmission Unit (MTU) for an IP datagram is
- A. 64 bytes
- B. 1024 bytes
- C. 1500 bytes
- D. 65536 bytes
- E. 4096 bytes
Answer (Click to show)
C. 1500 bytes
- Standard Ethernet MTU is 1500 bytes for IP datagrams
- This excludes Ethernet header (14 bytes) and FCS (4 bytes)
IV. Which of the following is TRUE about IPv4 class A, B and C?
- A. Large number of networks and small number of hosts, medium number of networks and hosts, and small number of networks and large number of hosts respectively.
- B. Medium number of networks and hosts, small number of networks and large number of hosts, and large number of networks and small number of hosts respectively.
- C. Small number of networks and large number of hosts, large number of networks and small number of hosts, and medium number of networks and hosts respectively.
- D. Small number of networks and large number of hosts, medium number of networks and hosts, and large number of networks and small number of hosts respectively.
- E. All have the same number of networks
Answer (Click to show)
D. Small number of networks and large number of hosts, medium number of networks and hosts, and large number of networks and small number of hosts respectively.
- Class A: Few networks (126), many hosts (16M)
- Class B: Medium networks (16K), medium hosts (65K)
- Class C: Many networks (2M), few hosts (254)
V. An example of protocols that doesn’t support CIDR and VLSM are:
- A. RIPv2 and EIGRP
- B. IS-IS and OSPF
- C. RIPv1 and IGRP
- D. RIPv2 and OSPF
- E. RIPv2 and EIGRP
Answer (Click to show)
C. RIPv1 and IGRP
- RIPv1 and IGRP are classful routing protocols
- They don’t support CIDR (Classless Inter-Domain Routing) or VLSM (Variable Length Subnet Masking)
VI. Identify the correct sequence in which the following packets are transmitted on the network by a host when a browser requests a webpage from a remote server, assuming that the host has just been restarted.
- A. HTTP GET request, DNS query, TCP SYN
- B. DNS query, TCP SYN, HTTP GET request
- C. DNS query, HTTP GET request, TCP SYN
- D. TCP SYN, DNS query, HTTP GET request
- E. HTTP GET request, TCP SYN, DNS query
Answer (Click to show)
B. DNS query, TCP SYN, HTTP GET request
- DNS query to resolve domain name to IP address
- TCP SYN to establish connection with web server
- HTTP GET request to retrieve webpage
VII. Which of the following is are example(s) of stateful application layer protocols? (i) HTTP (ii) FTP (iii) TCP (iv) POP3
- A. (i) and (ii) only
- B. (ii) and (iii) only
- C. (ii) and (iv) only
- D. (iv) only
- E. (i) only
Answer (Click to show)
C. (ii) and (iv) only
- FTP and POP3 are stateful application protocols (maintain session state)
- HTTP is stateless (each request independent)
- TCP is transport layer, not application layer
VIII. Which protocol can be used to load or retrieve Cisco IOS images to or from a router?
- A. SNMP
- B. TFTP
- C. UDP
- D. TCP
- E. NTP
Answer (Click to show)
B. TFTP
- TFTP (Trivial File Transfer Protocol) is used for transferring IOS images
- Simple, connectionless protocol suitable for network device management
IX. Which of the following protocols is used by email server to maintain a central repository that can be accessed from any machine?
- A. POP3
- B. IMAP
- C. SMTP
- D. DMSP
- E. SMTP, IMAP, POP
Answer (Click to show)
B. IMAP
- IMAP (Internet Message Access Protocol) maintains messages on server
- Allows access from multiple devices while keeping messages centralized
X. What is the purpose of TCP/UDP port numbers?
- A. To indicate the beginning of a three-way handshake
- B. To track the different conversations crossing the network at the same time
- C. To reassemble the segments into the correct order
- D. To identify the numbers of the data packets that can be sent without acknowledgment
- E. To establish a logical connection between sender and receiver.
Answer (Click to show)
B. To track the different conversations crossing the network at the same time
- Port numbers identify specific applications/services on a host
- Enable multiplexing/demultiplexing of multiple concurrent connections
Question 2 - Matching Exercise
Match the item in Column A with its corresponding item in Column B.
| Column A | Column B |
|---|---|
| i. 255.255.252.0 | A. IP address of router interface |
| ii. Video conferencing applications | B. DNS |
| iii. PDU: segment→packet→frame data encapsulation | C. Subnet mask of WAN link |
| iv. Email Transfer | D. TCP |
| v. ::ac1d:6405 | E. Process, host-to-host, internet, network access layer |
| vi. Distributed Database | F. UDP |
| vii. The status codes of 400 series (403, 404, etc) | G. Subnet masks of an organization that uses class B IPv4 address with 64 departments |
| viii. Default Gateway | H. Server Error |
| ix. DNS record | I. DF and is the last fragment (No more fragments) |
| x. IPV4 flags values 010 | J. DF and MF |
| K. IPv6 compatible with IPv4 | |
| L. Client Error | |
| M. MX | |
| N. DHCP | |
| O. 172.29.100.5 |
Answer (Click to show)
Correct Matches:
Column A Column B i. 255.255.252.0 G. Subnet masks of an organization that uses class B IPv4 address with 64 departments ii. Video conferencing applications F. UDP iii. PDU: segment→packet→frame data encapsulation E. Process, host-to-host, internet, network access layer iv. Email Transfer M. MX v. ::ac1d:6405 K. IPv6 compatible with IPv4 vi. Distributed Database B. DNS vii. The status codes of 400 series (403, 404, etc) L. Client Error viii. Default Gateway A. IP address of router interface ix. DNS record B. DNS x. IPV4 flags values 010 I. DF and is the last fragment (No more fragments)
Question 3 - Short Answer
i. Difference between congestion control and flow control?
(1 Mark)
Answer (Click to show)
Congestion Control vs Flow Control:
- Flow Control: Prevents sender from overwhelming receiver (receiver-centric)
- Congestion Control: Prevents sender from overwhelming network (network-centric)
- Flow control uses receiver window size
- Congestion control uses congestion window size and network feedback
ii. With example from each IPv4 class, briefly explain what Private IP address is.
(1.5 Marks)
Answer (Click to show)
Private IP Addresses (RFC 1918):
- Class A: 10.0.0.0 to 10.255.255.255 (10.0.0.0/8)
- Class B: 172.16.0.0 to 172.31.255.255 (172.16.0.0/12)
- Class C: 192.168.0.0 to 192.168.255.255 (192.168.0.0/16)
- Purpose: Not routable on public internet, used for internal networks
- Requirement: NAT for internet connectivity
iii. Differentiate IPv4, MAC, and port addressing.
(1.5 Marks)
Answer (Click to show)
Addressing Type Layer Scope Purpose Example IPv4 Address Network (L3) Global Logical network identification 192.168.1.1 MAC Address Data Link (L2) Local Physical device identification 00:1A:2B:3C:4D:5E Port Address Transport (L4) Host Application/service identification Port 80 (HTTP)
iv. Differentiate between OSI and TCP/IP model.
(1 Mark)
Answer (Click to show)
OSI vs TCP/IP Models:
- OSI: 7 layers (Theoretical, protocol-independent)
- TCP/IP: 4 layers (Practical, built around TCP/IP protocols)
- OSI Layers: Physical, Data Link, Network, Transport, Session, Presentation, Application
- TCP/IP Layers: Network Access, Internet, Transport, Application
SECTION B: (45 MARKS)
Attempt THREE (3) out of FOUR (4) questions provided.
Question 4 - TCP Protocol
a) A client sends a TCP segment to the server with Sequence Number 1400 and the payload included in the segment is 1399 bytes long.
i. What is the ACK Number in the acknowledgement that is returned from the server?
(2 Marks)
Answer (Click to show)
ACK Number = 2799
- Sequence Number: 1400
- Payload length: 1399 bytes
- Next expected byte = 1400 + 1399 = 2799
- ACK number acknowledges the next expected byte
ii. Assume this packet is lost but the following packet is received. What is the ACK Number in the acknowledgement that is returned from the server for this packet?
(2 Marks)
Answer (Click to show)
ACK Number = 1400
- TCP uses cumulative acknowledgements
- If packet with SEQ 1400 is lost, receiver continues to expect byte 1400
- ACK number will be 1400 until the missing segment is received
b) A TCP connection is using a window size of 10000 bytes, and the previous acknowledgment number was 22001. It receives a segment with acknowledgment number 24001.
i. Draw a diagram to show the situation of the window before and after.
(3 Marks)
Answer (Click to show)
TCP Window Diagram:
BEFORE: Window: 22001 to 32000 (10000 bytes) Sent and ACKed: Up to 22000 AFTER receiving ACK 24001: Window: 24001 to 34000 (10000 bytes) Sent and ACKed: Up to 24000 Window slides forward by 2000 bytes
ii. What will be the acknowledgement from the receiver if the second segment is received correctly?
(2 Marks)
Answer (Click to show)
ACK Number = 24001 (same as previous)
- TCP uses cumulative acknowledgements
- ACK 24001 means all bytes up to 24000 have been received
- Receiving additional segments doesn’t change ACK number if no new data is acknowledged
c) Consider a TCP connection between Host A and Host B. Suppose that the TCP segments traveling from Host A to Host B have source port number x and destination port number y. What are the source and destination port numbers for the segments traveling from Host B to Host A?
(2 Marks)
Answer (Click to show)
From Host B to Host A:
- Source Port: y
- Destination Port: x
- TCP connections are bidirectional with port numbers reversed for return traffic
d) Describe the functioning of a Distributed Denial-of-Service attack via SYN flood.
(4 Marks)
Answer (Click to show)
SYN Flood DDoS Attack:
- Attack Method: Attacker sends massive TCP SYN packets with spoofed source IPs
- Server Response: Server allocates resources for half-open connections
- Resource Exhaustion: Server’s connection table fills up, consuming memory/CPU
- Legitimate Impact: Genuine clients cannot establish TCP connections
- Defense: SYN cookies, rate limiting, firewalls with connection tracking
Question 5 - IP Addressing & Subnetting
a. Given the network address of 112.44.0.0 and the network mask of 255.255.0.0. Would the two stations with addresses 112.44.22.19/16 and 112.44.23.2/16 be on the same network?
(1 Mark)
Answer (Click to show)
Yes, they are on the same network
- Both addresses have /16 mask (255.255.0.0)
- Network portion: 112.44.0.0 for both
- Same network ID means same broadcast domain
b. How many network devices can be supported on a single network using network mask of 255.255.240.0?
(1 Mark)
Answer (Click to show)
4094 devices
- Mask 255.255.240.0 = /20
- Host bits: 32 - 20 = 12 bits
- Total hosts: 2^12 = 4096
- Usable hosts: 4096 - 2 = 4094
c. Having a single public address within a company and you need to use private addressing and NAT or PAT. With reasons, state what would be the best to use?
(2 Marks)
Answer (Click to show)
PAT (Port Address Translation) is best
- Reason: Single public IP address available
- PAT maps multiple private IPs to single public IP using different port numbers
- Supports many internal devices with only one public IP
- More efficient than basic NAT for single-IP scenarios
d. Suppose you are working as a network expert at Ng’ong’ona ICT company. As a network expert, you are given a task to create forty (40) networks/subnets for several departments and sections. You are required to use class B IP address (172.31.0.0/16) and each subnet should not have less than 1000 hosts, what will be: -
i. The subnet mask.
(1 Mark)
Answer (Click to show)
Subnet Mask: 255.255.252.0 (/22)
- Need ≥1000 hosts: 2^n - 2 ≥ 1000 → n = 10 host bits
- Subnet bits: 16 - 10 = 6 bits for subnetting
- Mask: /22 = 255.255.252.0
ii. The number of subnets and hosts per subnet.
(1 Mark)
Answer (Click to show)
- Total Subnets: 2^6 = 64 subnets
- Hosts per Subnet: 2^10 = 1024 total, 1022 usable
iii. The number of valid hosts per subnet.
(1 Mark)
Answer (Click to show)
1022 valid hosts per subnet
- Total hosts: 1024
- Usable hosts: 1024 - 2 = 1022 (excluding network and broadcast addresses)
iv. The subnets and their corresponding broadcast addresses (Note: Write the first six and the last two subnets and broadcast addresses).
(8 Marks)
Answer (Click to show)
Subnetting Table (172.31.0.0/16 with /22 mask):
Subnet Network Address Broadcast Address Host Range 1 172.31.0.0/22 172.31.3.255 172.31.0.1 - 172.31.3.254 2 172.31.4.0/22 172.31.7.255 172.31.4.1 - 172.31.7.254 3 172.31.8.0/22 172.31.11.255 172.31.8.1 - 172.31.11.254 4 172.31.12.0/22 172.31.15.255 172.31.12.1 - 172.31.15.254 5 172.31.16.0/22 172.31.19.255 172.31.16.1 - 172.31.19.254 6 172.31.20.0/22 172.31.23.255 172.31.20.1 - 172.31.23.254 … … … … 63 172.31.252.0/22 172.31.255.255 172.31.252.1 - 172.31.255.254 64 (Next would be 172.32.0.0) - Outside original /16 range
Question 6 - VLSM Subnetting

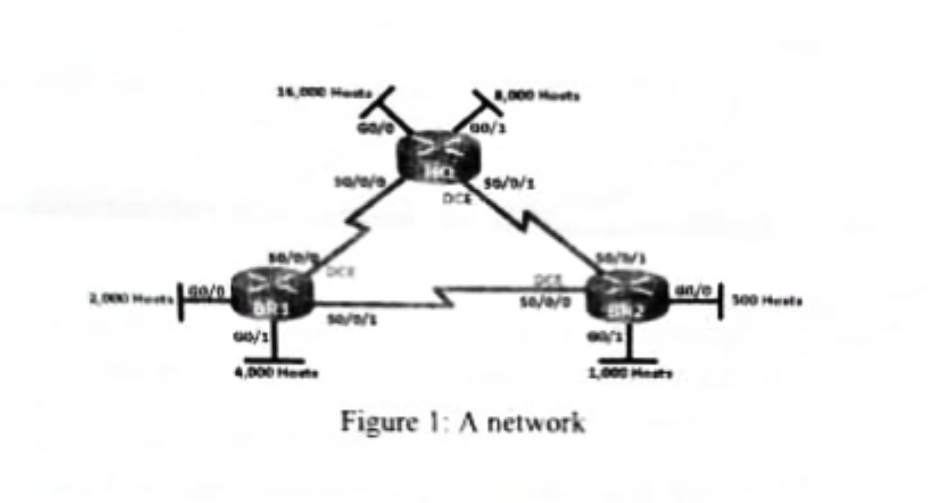

Given a network diagram in Figure 1, use a preferable IPv4 address to perform VLSM. Make sure you show the subnet mask, network ID, broadcast address and the reserved subnet if available.
(15 Marks)
Question 7 - TCP and Error Detection

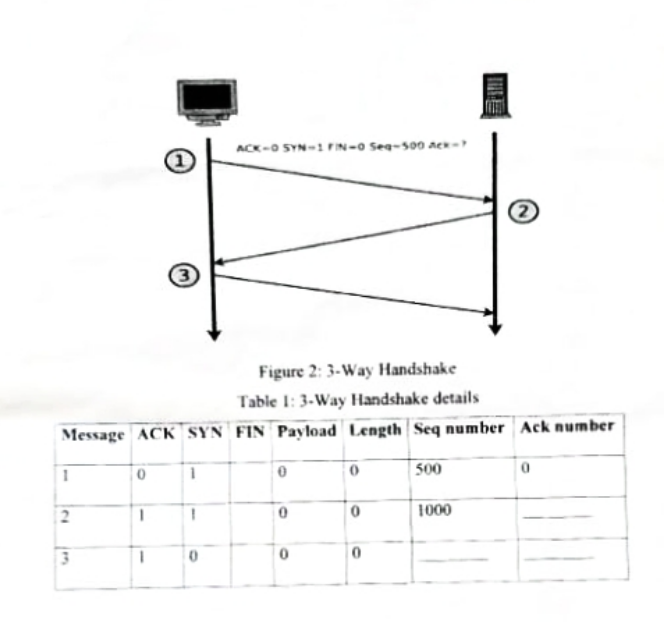

a) TCP implements a mechanism called the three-way handshake. State the purpose of such a mechanism.
(2 Marks)
Answer (Click to show)
Three-Way Handshake Purpose:
- Synchronize Sequence Numbers: Exchange initial sequence numbers (ISN)
- Establish Connection: Confirm bidirectional communication is possible
- Negotiate Parameters: Window sizes, MSS (Maximum Segment Size)
- Prevent Old Duplicate Connections: Ensure connection freshness
b) Two 16-bit words 0011 0101 1010 1000 and 0101 1001 0000 0101 are received along with another 16-bit word, 1101 0001 0101 0010, which is the UDP checksum of the first two words. Will the receiver detect an error?
(4 Marks)
Answer (Click to show)
Checksum Verification:
- Word 1: 0011 0101 1010 1000 = 0x35A8
- Word 2: 0101 1001 0000 0101 = 0x5905
- Sum: 0x35A8 + 0x5905 = 0x8EAD
- Add carry: 0x8EAD + 0x0001 = 0x8EAE
- Complement: ~0x8EAE = 0x7151
- Result: 0x7151 ≠0xD152 → Error Detected
c) With reference to part 7 (b), can the receiver be certain for sure that the message was not corrupted along the way? Justify your answer with an example.
(3 Marks)
Answer (Click to show)
No, cannot be 100% certain
- Checksums can miss certain error patterns
- Example: If errors cancel each other in the sum
- Data: 0x1234 + 0x5678 = 0x68AC
- Corrupted: 0x1334 + 0x5578 = 0x68AC (same sum)
- Checksum appears valid but data is corrupted
d) The diagram in Figure 2 shows the establishment of a TCP connection. Complete the information in the table 1 for the TCP messages 2 and 3 according to TCP messages 1.
(6 Marks)
Answer (Click to show)
Completed TCP Handshake Table:
Message ACK SYN FIN Payload Length Seq number Ack number 1 0 1 0 0 0 500 0 2 1 1 0 0 0 1000 501 3 1 0 0 0 0 501 1001 Explanation:
- Message 2: ACK=1, SYN=1, Ack=501 (expecting next byte after 500)
- Message 3: ACK=1, SYN=0, Seq=501, Ack=1001 (expecting next byte after 1000)
END OF EXAMINATION PAPER
Study Tips
- Practice TCP sequence number calculations
- Master VLSM subnetting techniques
- Understand TCP handshake and flow control
- Review checksum calculation methods
- Practice with different network scenarios
